Precision UK - Medical Gas

Precision UK Ltd is a British Manufacturer and World Leaders in supplying Medical Gas Pipeline Equipment. #MGPSStockport, united kingdomEnglishRecommendations : 0

Not verified

Appointment

About

Precision UK Ltd is a British Manufacturer and World Leaders in supplying Medical Gas Pipeline Equipment compliant with HTM 2022/01, C11 and BS EN 7396.

With over 40 years combined experience of company staff within the medical gas pipeline industry, Precision UK Ltd and its products recognise and embrace the specialist requirements of this industry to include all aspects of customer service, product design, cleanliness, packaging and usability required to become a successful partner for inst...

Products

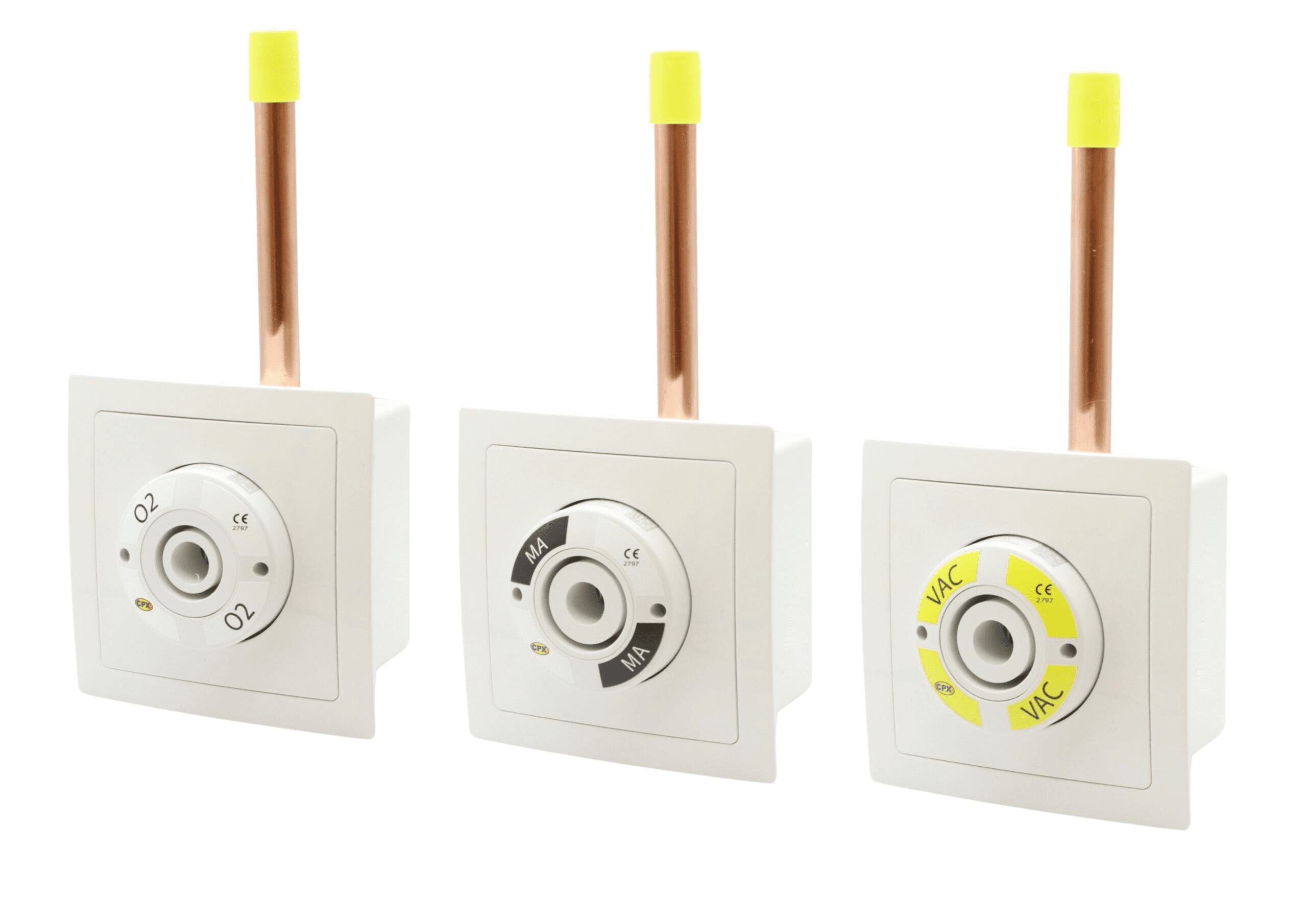

Medical Gas Outlets

The CPX Terminal Units are designed and manufactured in the UK under BS EN 13485 Medical Devices: Quality Management Systems, BS 5682 & EN 9170-1. The units comprise a first fix, second fix, and second fix valve assembly and connect medical appliances to the gas supply system. The terminal units can be flexibly integrated into any type of installation including surface, flush, bedhead, and pendant, and are supplied with a 3-year warranty. Test plugs are included with flush, surface, and bedhead types for first-fix pressure testing on site.

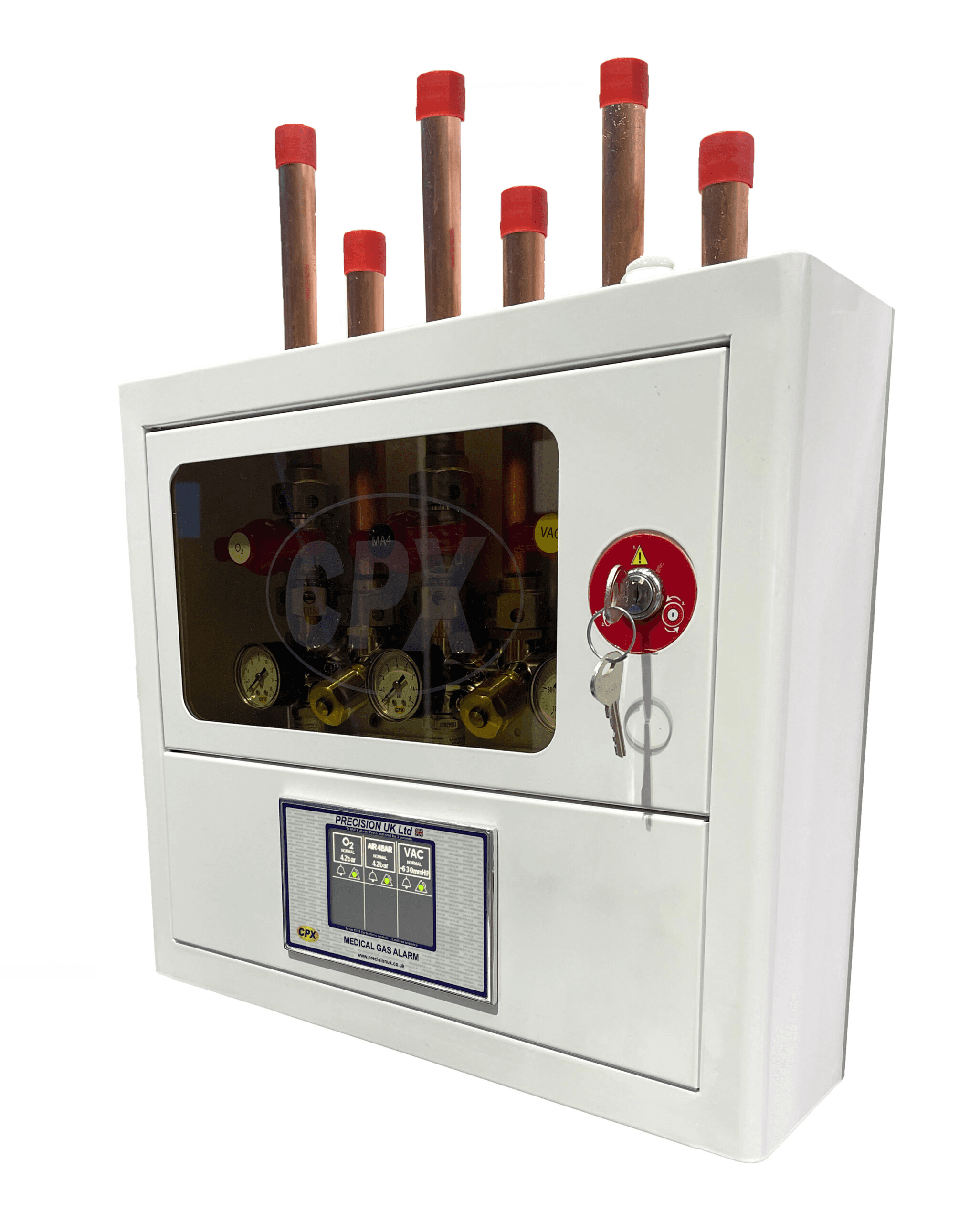

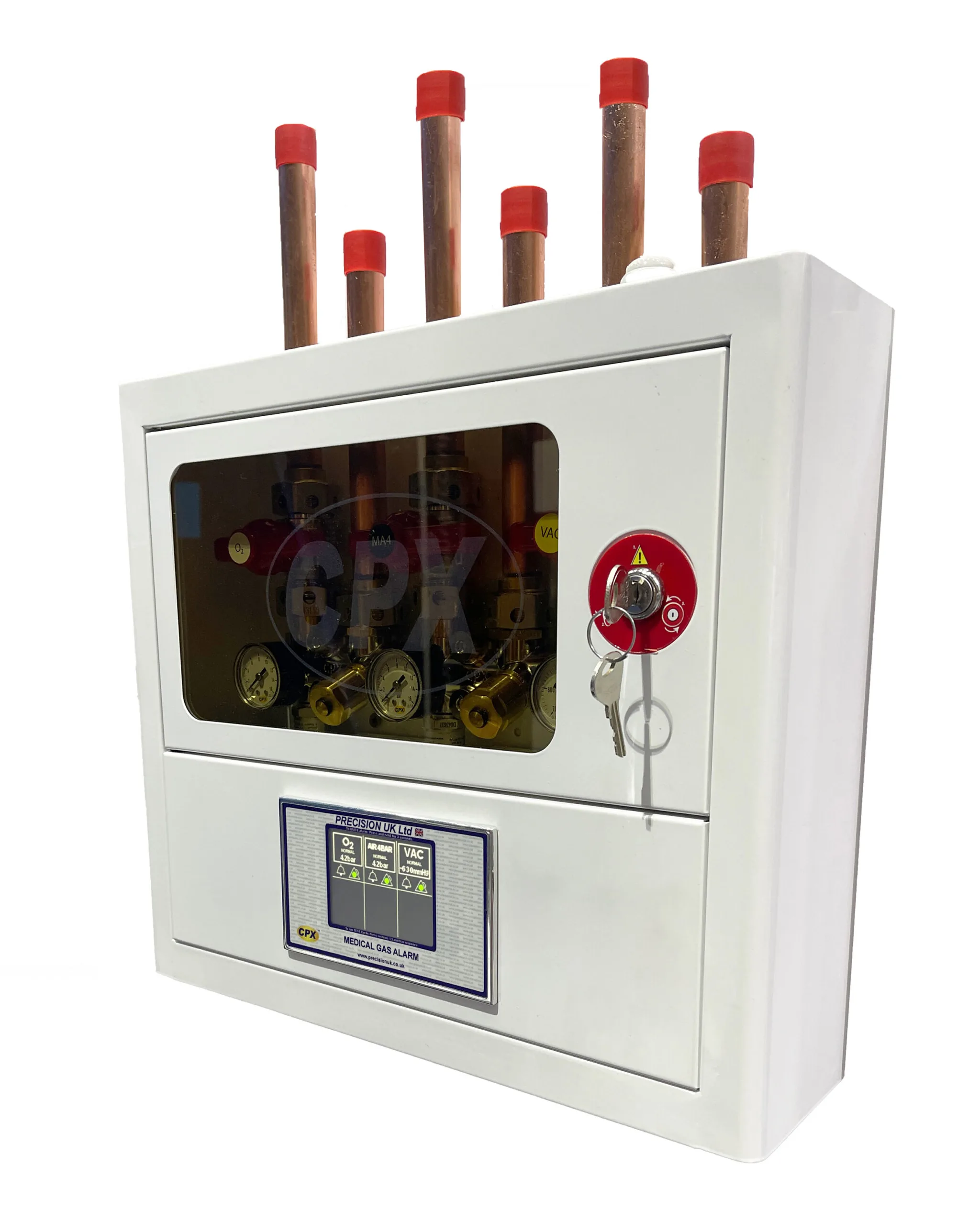

Compact AVSU Module

The AVSU can be installed as a flush or surface mounted. Gas Identification is located on the body of the AVSU behind the window and is immovable. A large viewing window to the door gives an immediate indication of Gas Identification located on the body of AVSU, valve position, and flow direction. In an emergency, push red disk to allow access to the valve. The anti-tamper device can be fitted to the window and connected to our optional Digital Alarm (integrated or remote) and BMS to incorporate monitoring of all CPX AVSUs. Non-interchangeable NIST connectors are fitted downstream of the valve. Including 100% sealing serviceable non-return valves to allow the pipeline to be pressure tested and provide an easily accessible point for gas sampling.

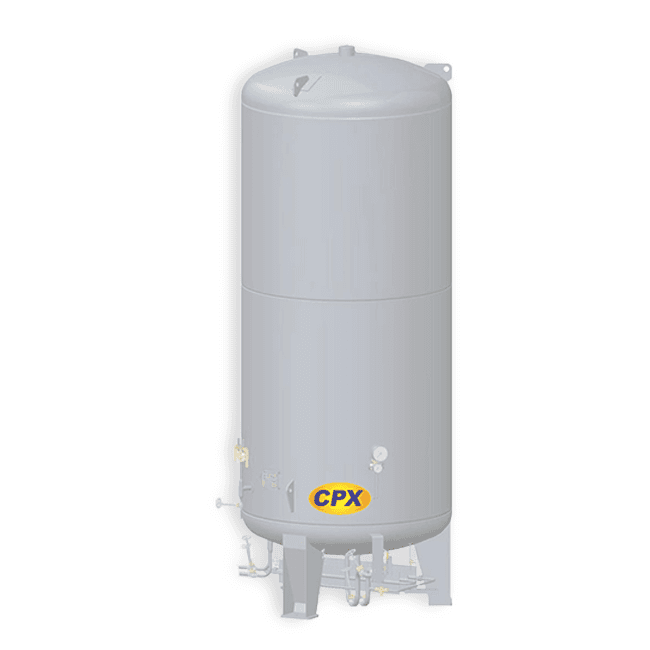

Liquid Oxygen Tank

Manufactured and tested according to the European Pressure Equipment Directive or to the regulations of other countries. Vessels are available in vertical or horizontal configurations, sized from 2,200 to 200,000 litres. Low evaporation rate. Ergonomic layout of instruments and controls for ease of use. Manufactured and tested according to the European Pressure Equipment Directive 97/23 CE (PED) or to the regulations of other countries. High quality is ensured by measures, including a quality management system complying to ISO 9001. VIE Control Panels available 500I/min-6000l/min.
